Indoor P1.5 Shelf LED Display GOB 3 In 1 LED Configuration Aluminum
Chasis Materials
Product introduction

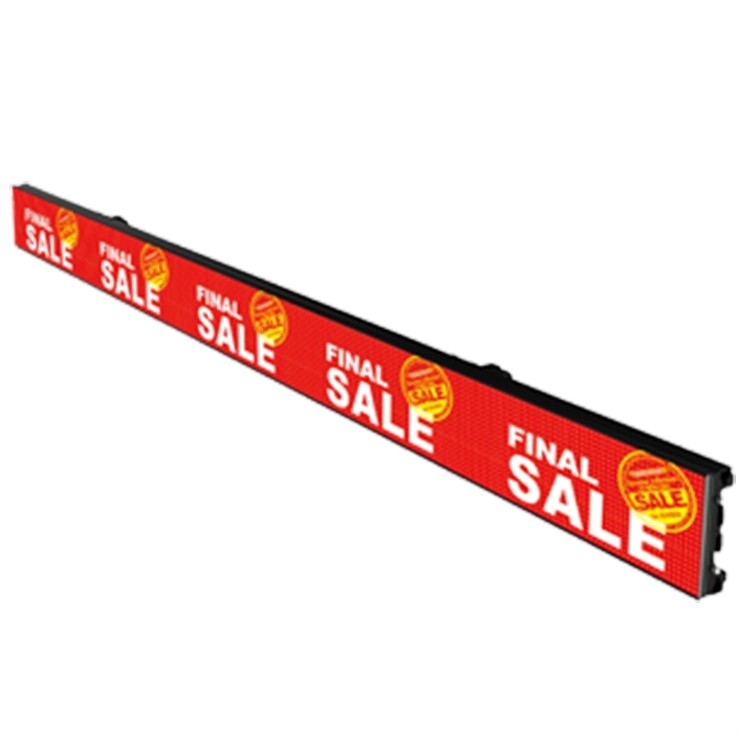

Shelf LED Display Screen including normal Shelf LED Display and
shelf Header LED Display screen. Header shelf LED Display Screen
install at the top of the shelf, wide display area can attract more
customers' attention, it can bring more customers and profits.
Multiple installation methods make installation more convenient.
Features:
• Ultra thin width, light weight, easy to install and move.
• Super simple installation, suitable for all stores.
• Plug in display, easy to operate.
• LAN Integrated publishing and remote publishing via the Internet.
•Various linkage modes, such as single screen application, cascade
application, creative application, etc.
• USB / Wi Fi / HDMI / DVI / wired connection; fast management and
release of mobile phone and PC.
• The calibration data is saved on the module and the factory
settings are restored within 5 seconds.
Parameters:
| Pixeltype | 1.5mm |
| LED Encapsulation | GOB |
| PixelConfiguration | RGB |
| DrivingIC | ICN2065+ICN2018 |
| FreshFrequency | ≥3840Hz |
| ModuleResolution | 100*40dots |
| ModuleSize | 150mm*60mm |
| InputVoltage(DC) | 4.2V |
| MaxVoltage | 1.5A |
| ModuleMaxPower | 6.5W |
| Drivingmethod | 1/45 |
| Horizontalviewingangle | ≥170(±10°) |
| Verticalviewingangle | ≥170(±10°) |
| Brightness | 400~600cd/㎡ |
| GrayLevel | >14bit |
| FreshFrequency | ≥1920Hz |
| CabinetResolution | 240*45/ 480*45 / 720*45 |
| PixelDensity(dot/㎡) | 444444 dots/㎡ |
| CabinetSize | 300*60mm / 600*60mm /900*60mm |
| MTBF | ≥100000Hours |
| LifeSpan | ≥50000Hours |
| Pixeluncontrolledrate | 0.3‰ |
| HUB | 1EA/ 1EA / 2EA |
| PowerSupply | DC5VTheExternalpowersupply |
| WorkCondition | INDOOR |
| Temperatureoperating | -40to60℃ |
| Humidityoperating | 10%to90%RH |
| StorageTemperature | 0to40℃ |
| StorageHumidity | 40%to60%RH |
P1.5 Shelf edge Display size is availble:
300*60mm
600*60mm
900*60mm
1200*60mm

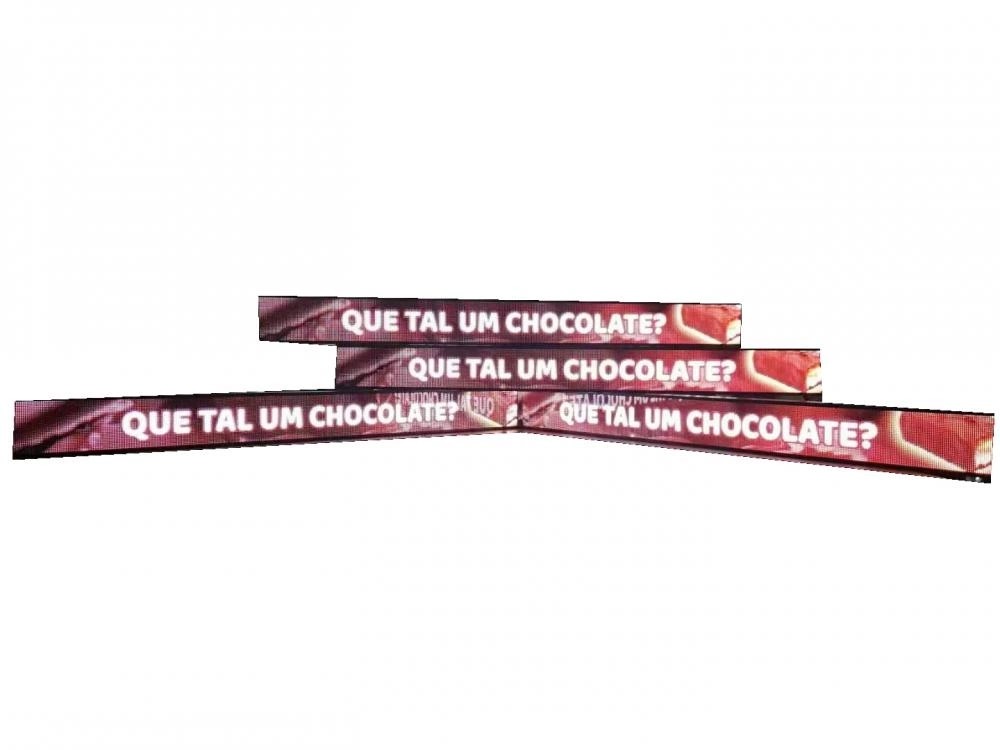

P1.5 Header display size:
600*120mm
600*240mm
900*120mm
900*240mm
1200*120mm
1200*240mm
How to Select Shelf LED Display
Location-indoor,outdoor or semi-outdoor
Location is the most important factors for selecting the correct
LED display.Different type of location such as rooftop,large
billboards and stage backdrops or requires front access for
servicing will require different led cabinets and modules.
Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the
space and availability, then you want to make sure the selected LED
size (and number of cabinets, height, width & depth) can be
accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of
viewing.
LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require
higher lamination than those facing north or south. The larger
outdoor billboards and configurations must be equipped with
automatic light sensors to automatically adjust brightness in
reaction to sunlight and cloud covers.
Selecting Your LED Supplier
For shop:
Attract and delight customers attention. Implement efficient
operation for supermarket. Low down labor cost of changing paper
labels.
For ads agency: Innovative Ads media, attracting more attentions.
Easy installation, no need for heavy steel construction and no need
government released approvement.
Higher ROI (Return of investment)
Based on COB/LED technology: Providing more on-the-spot product
information for customers.Offers a more engaging experience for our
customers at the shelf.
Widely Application:
Supermarket, Club, Retails perimeter, retails shop, fashion shop
and so on.
Vivid digital display with roll advertising. Attract and delight
customer attention.Implement efficient operation for supermarket.
