SMD3535 P8mm Sport Perimeter LED Display 960*960mm Cabinet IP65
Water Resistant 6800nits
Product feature
High Brightness and Saving Energy
outdoor HD led display leader,very mature product,each type is at
least 2 years ahead of the industry.
Using the high brightness led light with the lowest consumption,
saving energy ≥30%, with 28 core technologypatent, whole saving
energy≥50%, energy saving and environment protection.
Adopt general led module series with core technology, make it
possible for customer to upgrade the screen to smaller pixel
pitch,Increase the secondary marketing opportunity and maintain
good relationship.
Support Format Low Cost Installation
Broadct color gamut, intelligent adjustment for color temperature
and brightness.Uniform color, high contrast, the picture is vivid
and nature.
Support main displaying format, workable for DVI HDMI 3G/HD/SD SDI
display format.
Modularized design,low cost for installation and maintenance, easy
to operate,support hot plugging.
Double Security Strong and Flat
IP65 for rear and back side, fit for naked installation without
decoration.
Dual backup for power supply and system,double security.
The surface is dark black, strong and flat, UV-resistancemodule
components,make the screen keep flat.
Application places
Stadium, Football Field, Sports.
Specification
| Indoor / Outdoor PM | IP6 | IP10 | IP8 | OP10 | OP16 |
| Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 |
| Scan | 1/8 | 1/4 | 1/8 | 1/4 | 1/1 |
| Module Dimension | 192x192mm/0.63x0.63ft | 320x160mm | 320x160mm | 320x160mm | 256x256mm |
| Cabinet Dimension | 960x960mm/3.15x3.15ft | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm |
| Cabinet Resolution | 160x160 | 96x96 | 120x120 | 96x96 | 64x64 |
| Cabinet Weight | 40kg / 88Ib (Iron) | 44kg / 97Ib (Iron) | 49kg / 108Ib (Iron) | 48kg / 105Ib (Iron) | 46kg / 101Ib (Iron) |
| Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m |
| IP Rate | IP43 | IP65 |
| Service Access | Front / Rear | Front / Rear |
| Refresh Rate (HZ) | 2880 | ≥2880 |
| Grey Scale (bit) | 14bit | 16bit |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 |
| Input Voltage (AC) | 110V / 240V | 110V / 240V |
Detailed:
Solid, Compact, Strong Cabinet Design For All Weather and Prevent
for Any External Attacks
Rotating Design with Wheels for Emergency Exit
PM series with rotating base and wheels for emergency exit for
perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most
football associations.

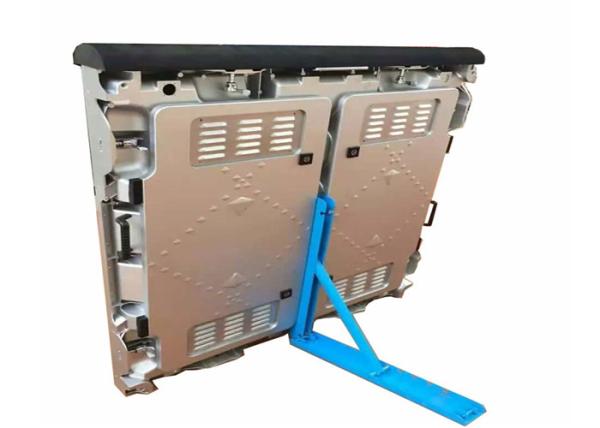

Adjustable Bracket
Cabinet adjustable angle between 60°and 90°
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module
mask protect LED from ball and players striking,
besides protect players against further injury.
Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and
leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED
display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
| · High Brightness: ≥7000nits | · High Grey Scale: 65536 levels |
| · High Refresh Rate: 2880Hz | · High Contrast: 5000:1 |
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter
LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
Backup for Recycle
