Compact Cabinet Design Soccer Field Advertising Boards Thin Led
Display For All Weather
Advantages
1. We Use Top Rate LED to make best Led display screens, as well as
best power supply, high quality signal & power cables, etc.
2. Strict Perfect anti-static precautions: during manufacturing,
static electric damage is the most serious problem.
3. Use advanced processing technology, machinery guarantee for
high-quality and long-life time products
4. Can be normally used under the temperature between -20 and +65
degree .
5. With production capacity of 8,000 m2 per month, we can make
in-time delivery.
6. we can tailor our product according to our clients requirements;
Specification
| Indoor / Outdoor PM | IPM6 | IPM10 | OPM8 | OPM10 | OPM16 |
| Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 |
| Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 |
| Module Dimension | 192x192mm/0.63x0.63ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 256x256mm/0.84x0.84ft |
| Cabinet Dimension | 960x960mm/3.15x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1024x1024mm/3.36x3.36ft |
| Cabinet Resolution | 160x160 | 128x96 | 160x120 | 128x96 | 64x64 |
| Cabinet Weight | 40kg / 88Ib (Iron) | 44kg / 97Ib (Iron) | 49kg / 108Ib (Iron) | 48kg / 105Ib (Iron) | 46kg / 101Ib (Iron) |
| Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m |
| IP Rate | IP43 | IP65 |
| Service Access | Front / Rear | Front / Rear |
| Refresh Rate (HZ) | 2880 | ≥2880 |
| Grey Scale (bit) | 14bit | 16bit |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 |
| Input Voltage (AC) | 110V / 240V | 110V / 240V |
Detailed:
Solid, Compact, Strong Cabinet Design For All Weather and Prevent
for Any External Attacks

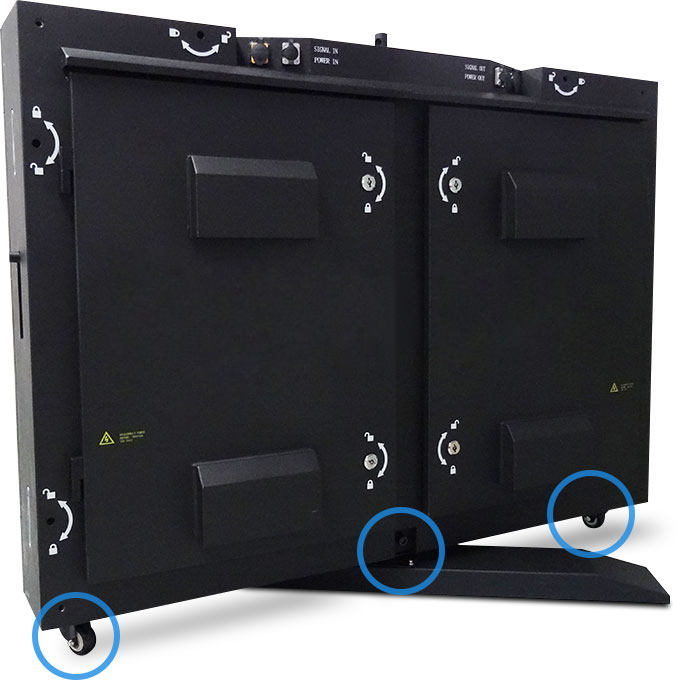

Rotating Design with Wheels for Emergency Exit
PM series with rotating base and wheels for emergency exit for
perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most
football associations.
Adjustable Bracket
Cabinet adjustable angle between 60°and 90°
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module
mask protect LED from ball and players striking,
besides protect players against further injury.
Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and
leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
LEDFUL PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED
display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
| · High Brightness: ≥7000nits | · High Grey Scale: 65536 levels |
| · High Refresh Rate: 2880Hz | · High Contrast: 5000:1 |
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter
LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
Backup for Recycle
