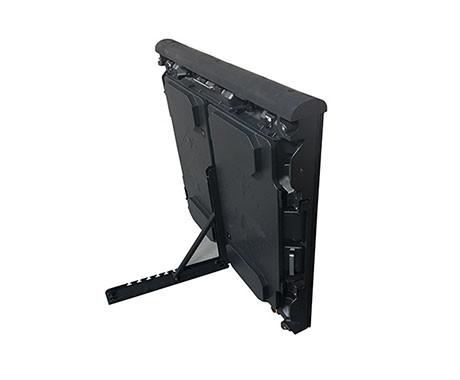

P6.67mm Multi Functional Sport Perimeter LED Display With Light
Weight Die Casting Cabinet
Perimeter Sports LED Display
Light Weight Die Casting Cabinet IP65 Outdoor Perimeter LED Display
Outdoor Perimeter led screen for Sports Advertising
Pixel Model:
Outdoor: P4/P5/P6.67/P8/P10
Indoor: P2.5/P3.07/P4/P5/P10
Die-casting Aluminum LED Cabinet:640*960mm/960*960mm
Cabinet Weight:15kg/26kgs/pcs
Perimeter LED Screen Main Features :
1. Multifunctional usage: Available for both indoor and outdoor
stadium perimeter application,also can be used for rental events
LED screen.
2. Soft,replaceable, impact-resistant shaders protect LEDs from
harm and will not injure players in the event of a collision.
3. Super light design,with only 25kg/pcs,save both shipping costs
and labor costs.
4. The display with two unique, rugged stands can be adjusted
different angles showing a perfect image to live audiences and
broadcast cameras.
5. The whole perimeter LED display system is designed according to
the superior quality standard,Anti-interference security assurance.
Specification
| Indoor / Outdoor PM | IPM6 | IPM10 | OPM8 | OPM10 | OPM16 |
| Pixel Pitch(mm) | 6 | 10 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 27777 | 10000 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3535 | SMD3535 | SMD3535 |
| Brightness (nits) | 2200 | 1800 | 6800 | 7500 | 8000 |
| Scan | 1/8 | 1/4 | 1/3 | 1/2 | 1/1 |
| Module Dimension | 192x192mm/0.63x0.63ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 320x160mm/1.05x0.52ft | 256x256mm/0.84x0.84ft |
| Cabinet Dimension | 960x960mm/3.15x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1280x960mm/4.2x3.15ft | 1024x1024mm/3.36x3.36ft |
| Cabinet Resolution | 160x160 | 128x96 | 160x120 | 128x96 | 64x64 |
| Cabinet Weight | 40kg / 88Ib (Iron) | 44kg / 97Ib (Iron) | 49kg / 108Ib (Iron) | 48kg / 105Ib (Iron) | 46kg / 101Ib (Iron) |
| Power Con. (Max / Avg) | 550 / 100 w/sq.m | 500 / 90 w/sq.m | 680 / 120 w/sq.m | 650 / 110 w/sq.m | 690 / 130 w/sq.m |
| IP Rate | IP43 | IP65 |
| Service Access | Front / Rear | Front / Rear |
| Refresh Rate (HZ) | 2880 | ≥2880 |
| Grey Scale (bit) | 14bit | 16bit |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 |
| Input Voltage (AC) | 110V / 240V | 110V / 240V |
Detailed:
Solid, Compact, Strong Cabinet Design For All Weather and Prevent
for Any External Attacks
Rotating Design with Wheels for Emergency Exit
PM series with rotating base and wheels for emergency exit for
perimeter LED display installation in stadium.
This is necessary for quick and easy escape required by most
football associations.
Adjustable Bracket
Cabinet adjustable angle between 60°and 90°
Protective Top Cover and Rubber Module Mask
Protective top cover protect players from injury. Rubber module
mask protect LED from ball and players striking,
besides protect players against further injury.
Independent RCD Protection
RCDs protect the system against short circuits, overcurrent and
leakage currents which makes the system absolutely safe to operate.
Professional Software PM Player
PM Player and software makes it easy to control your screen,
manage your media and show linear content on your perimeter LED
display, which is friendly for advertising application.
4H Makes Perfect Visual Effect
| · High Brightness: ≥7000nits | · High Grey Scale: 65536 levels |
| · High Refresh Rate: 2880Hz | · High Contrast: 5000:1 |
SMD Performance and View Angle
Better contrast ratio and viewing performance
Wide viewing angle increasing its value by covering more viewing
Energy Saving Stadium Perimeter
LED Display
1) Using high efficiency IC driver
2) improved PCB design
3) Power conversion efficiency
Backup for Recycle
