High transparent video display Good Visualization cabinet
1000*500mm and 1000*1000mm
1. Good visualization
Glassbased design allows the light to pass through the glass
without any influence to the building
structure around.Transparency of the glass screen can up to 80%.
2. Ultra-thin, and ultra-light.
Thickness 35mm and 10 kg per sqm.
High brightness, and high definition.
The brightness is over 5500 nits/m2.
3. Easy and convenient maintenance.
Repairing single SMD without taking of single module or entire
panel.
4. table and Reliable
Stability is very import for this product, under the patent of
inlaying SMD into PCB, ensure the stability better than other
similar products in the market.
5. Wide use range.
Wherever the glass wall is, glass LED display can be installed.
Such as bank, supermarket, theater,
business street, elevator, hotel and coffee house, etc.
6. High transparency.
High transparency with 60%~80% for front and back. Perfect cabinet
design for special application.
7. Delicate structure
The cabinet is designed with delicate structure and the the cabinet
is ultra thin, ultra light and strong. the tickness is only 40mm
thickness.
8. Fast lock design,easy installation.
With fast lock design, allows for easy assembly and disassembly. It
is very easy for cabinet connection in just a few seconds.
Parameters
| Model | P3.91 | P3.91 | P7.81 | P7.81 | P10.4 |
| Pixel pitch | 3.91-7.81 | 3.91-7.82 | 7.81 | 7.81-15.625 | 10.4 |
| Lamp | Indoor SMD2121 | Outdoor SMD1921 | Outdoor SMD2525 | Outdoor SMD2525 | Outdoor SMD2525 |
| Pixel density | 32768 | 32768 | 16384 | 8192 | 9230 |
| Module size | 500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size
available |
| Cabinet material | Acryic Aluminum Steel |
| weight | 15KG/㎡ | 15KG/㎡ | 14KG/㎡ | 14KG/㎡ | 14KG/㎡ |
| Transparency | 65% | 65% | 70% | 75% | 80% |
| Brightness | ≥1000nit | ≥4500nit | ≥4500nit | ≥4500nit | ≥4000nit |
| Refresh rate | ≥1920HZ |
| Scan mode | 1/165 | 1/85 | 1/25 | 1/25 | 1/35 |
| Max power consumption | 400W/㎡ | 600W/㎡ | 600W/㎡ | 550W/㎡ | 550W/㎡ |
| Average power | 120W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| PCB | FR-4 four layers board,2.0mm thickness |
| Driver IC | MBI5124,Hight Refresh Rate |
| Installation | Hanging or Stacking |
| Brightness level | 256 Level |
Application
AVOE Transparent Curtain Wall LED Display for building glass wall,
Auto 4S shop,
high-end clothing stores, retail windows, stage rental, et

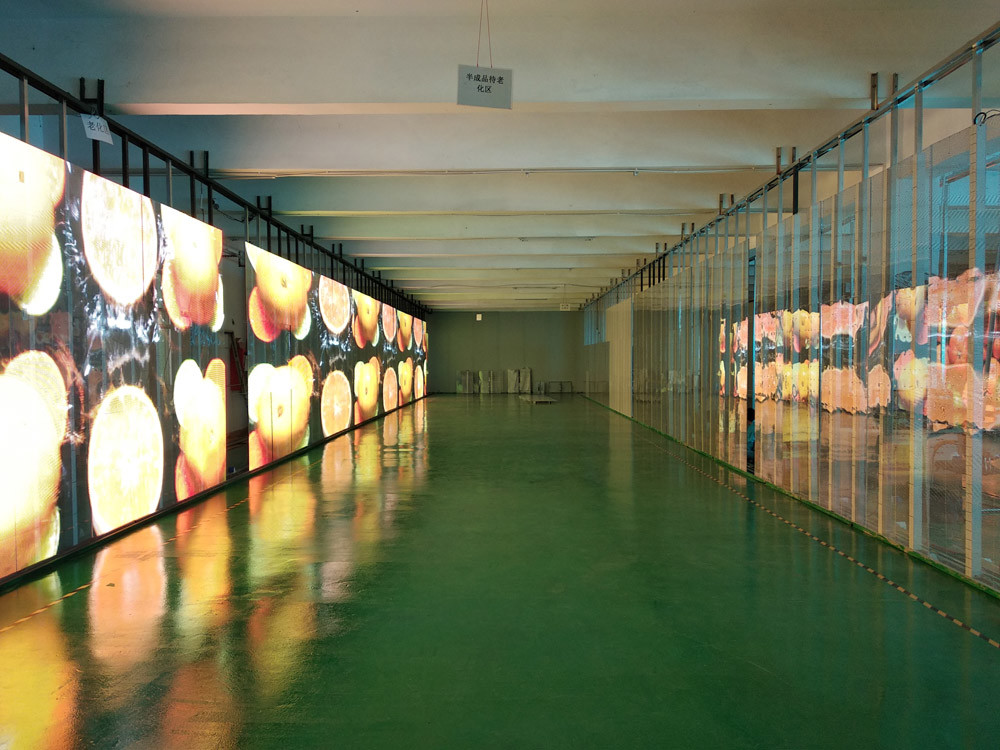

Detailed Pictures
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
