P2mm LED Poster Display
Hotel Restaurant Indoor advertising player P2mm Super HD LED Poster
Display 640*1920mm
The ultra-thin, light weight, innovative design Poster is the
latest in creative retail LED advertising displays. Compared to
traditional heavy and bulky LED advertising displays, iPoster is
much lighter, slimmer, and more convenient as it can be set
up,relocated and operated very simply.
LED Poster is suitable for convention and exhibition center,
shopping center, conference, hall, wedding, performance, airport
station, supermarket. restaurant, movie studio and other occasions.
Feature
1. Plug and play zero setting.
2. Support Iso&Android devices.
3. Easy to opeartion,control by special mobile APP LEDArt to
connect to the screen WIFI.
It support shot and send.
4. Ultra-thin&Ultra light design,the weight is only 36kg/pcs
and the thickness is 30mm.
5. Can support 10pcs unit together with no gap compared with the
similar product.
Product specification
| Item | Technical parameter |
| Pixel Pitch | 2mm |
| Module Resolution | 160*80 dots |
| Module Size | 320*160mm |
| Pixel configuration | 1R1G1B |
| Module Chip | Kinglight/Nationstar |
| Driving Method | 1/32Scan |
| Physical Density | 250,000 dots/m2 |
| LED Encapsulation | SMD1515 |
| Module Port | BUH75 |
| Module Consumption | ≤16W |
| Brightness | 1200 cd/m2 |
| Cabinet Dimension | 640*1920mm |
| Cabinet External Dimensions | 700*1980*100mm |
| Cabinet Resolution | 320*960 dots |
| Quantities of module | 2*12 |
| Cabinet Flatness | Tolerance of inter pixel ≤0.3mm |
| Cabinet Material | Aluminume,Iron |
| Cabinet Weight | 38KG |
| Option Distance | 2--80M |
| Viewing Angle | Horizontal 140° Vertical 120° |
| Max. Power consumption | 675W/sqm |
| Driving Device | ICN2153IC |
| Frame Frequency | 60Hz |
| Screen Flatness | Tolerance of cabinets ≤0.6mm |
| Refresh Frequency | 1920Hz/3840Hz |
| Control Mode | Wifi asynchronization |
| Working Environment | Temperature -10℃~60℃ Humidity 10%~70% |
| Display Working Voltage | AC110V/220V , 50Hz/60Hz |
| Colour temperature | 8500K-11500K |
| Communication distance | Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Gray scale | ≥16.7M |
| MTBF | >10,000 hours |
| Support video source | HDMI, CVBS, SDI , DVI etc |
Detailed:
How LED Poster Works - Topology Diagram
Dimension
Packaging

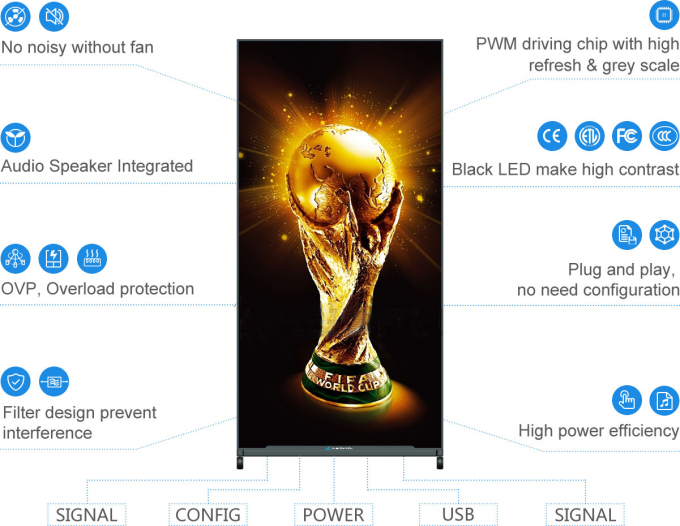

Key Features
