P8.928 Decorative AVOE LED Display / RGB LED Screen With Colored
Mask Anti-Scratch
P8.928 Decorative RGB Full LED Display with Colored Mask and

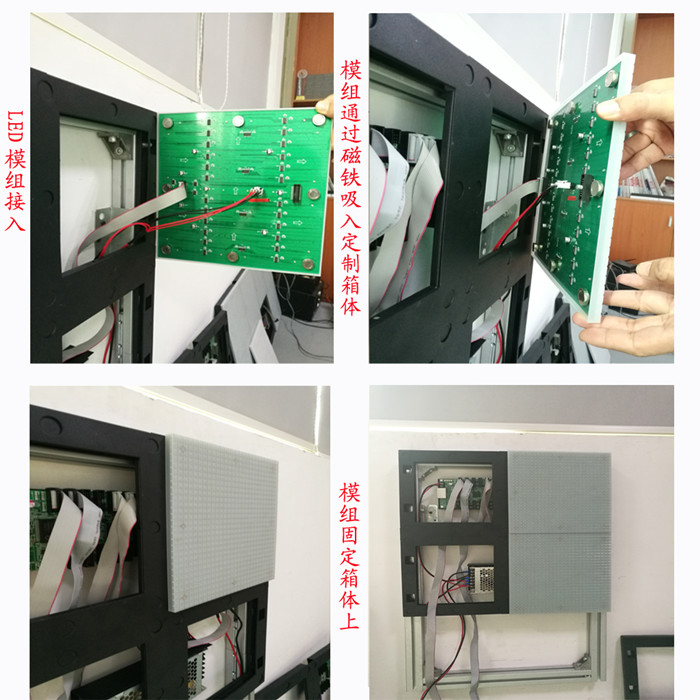

250x250mm Front Service Magnet LED Module
Profile
Shen Zhen AVOE Hi-tech Co., Ltd. is a manufacturer specializing in
high-quality LED display products, which focuses on the
development, design, manufacture, sales and service of customized
LED display products.
The company's newly developed LED decorative panel screen has a
special appearance (anti-collision, anti-scratch, and can decorate
the wall); it is coordinated with the building when it is not
displayed, and solves the drawback of the decorative LED display
"black". to show the different visual impact.
P8.928mm Specification
| No. | Part | Item | Technical index |
| 1 | Pixel | Pixel pitch(mm) | 8.928mm |
| 2 | Pixel configuration | 1R1G1B(SMD) |
| 3 | LED Type | SMD2727 |
| 4 | Led density | 12545 /㎡ |
| 5 | Module/cabinet | Cabinet Size | 250×250(mm) |
| 6 | Module resolution | 28×28(dot) |
| 7 | Cabinet Size | 500×500mm |
| 8 | Cabinet thickness | 60mm includes module thickness |
| 9 | Control system | Control system | WINDOWS(2000,XP,Vista,Win7) |
| 10 | Control method | Synchronous and asynchronous control |
| 11 | input signal format | AV S-Video VGA HDMI DVI.etc. |
| 12 | Display technical parameter | LED driver | Constant current drive 1/7S |
| 13 | Refresh frequency | ³2000hz |
| 14 | Grayscale/ Color | 65536 Levels |
| 15 | Screen brightness | ³ 2500 cd/㎡ |
| 16 | working life | >100000hrs |
| 17 | out-of-control point | ≤3/100000 |
| 18 | Operating environment | For Indoor use |
| 19 | Working humidity range | 10%--90% RH |
| 20 | operating temperature range | -20-- 65 ℃ |
| 21 | Maximum power | 600W/㎡ |
| 22 | Average power | 300W/㎡ |
| 23 | Unit module splicing joint |
size of the gap splicing joint of the unit board is the same ≤ 2㎜
|
| 24 | optimum distance | 8-60m |
| 25 | visual angle | H 140°/ V 140° |
| 26 | surface evenness | maximum error ≤ 2㎜ |
| 27 | uniformity | Module brightness uniformity 1:1 |
| 28 | Display content | Video DVD TV Image words flash and others |
| 29 | Continuous failure free working time | ≥10000hrs |
| 30 | interface | RJ45 network interface |
| 31 | Control distance | multimode fiber<500m, CAT5 <100m |
| 32 | Protection technology | Damp-proof, dust-proof, anti-corrosion, anti-static and
lightning-proof, with over-flow, short-circuit, over-pressure and
under-pressure protection |
| 33 | Software | General LED Studio software |
Design concept
The LED display is more than just a big TV. With the decorative
panel, it has more room to play.
The display and the decoration are perfectly combined to complement
each other.
Not all displays require HD, and if so, how the fireworks bloom
beautifully.
The decoration needs beauty and layering, we all have it, the
mosaic is still very charming;
The LED screen is no longer so noble, it can be in close contact
with us, with an interactive system, he can hug you.
3. Product Features
When the LED screen is not bright, it will be black, affecting the
appearance, not being able to collide, fragile, and having the risk
of electric leakage. When the decorative panel is not bright, the
high-end atmosphere is beautiful, and it can be bumped, safe, and
positive. It does not affect daily care and can be wiped. The color
is soft and not glaring.
This occasion focuses on the overall effect, the environment
rendering, does not require high definition.
LED decorative panel screen pioneer to solve the black screen,
highlighting the charm, collision resistance, not glare
High definition is only suitable for watching movies, used by
various command centers
And to render the atmosphere, you only need colorful effects,
clarity is not important to you.
The impact on the visual is what you want, isn't it?
Three major technological innovations
1. It is integrated with the wall or architectural color
(customizable appearance color, need proofing test), it will not be
black when it is not bright; overall atmosphere, beautiful;
2. The front of the screen body is anti-collision, installed in a
contactable occasion, and equipped with an interactive system to
directly contact the screen body;
3. The display screen is soft, effectively reducing the moiré, and
the colorful effect is outstanding.
Detailed
