P4mm Stage Rental 1R1G1B LED Display Refresh Rate 3840Hz Seamless
stitching 4m-100m Viewing Distance
Features
1. Excellent design should be easy to understood, the product will
talk for itself, cancelling the necessity of detailed explain.
2. Seamless stitching: With our special connector design it is easy
to reduce gaps while installing, creating a perfect display.
3. Adopt the latest anti-collision technology, make a more stable
cabinet during rental events, make a longer life span.
4. Magnesium aluminum alloy control box, adapt to all kinds of
weather.
5. Customized Arc design: bevel edge cabinet design according to
customer requirements makes Arc screen assembling.
6. Gapless connection: under 0.1 mm tolerance gap between cabinet
and module, under 0.2mm tolerance gap between cabinets.
Application

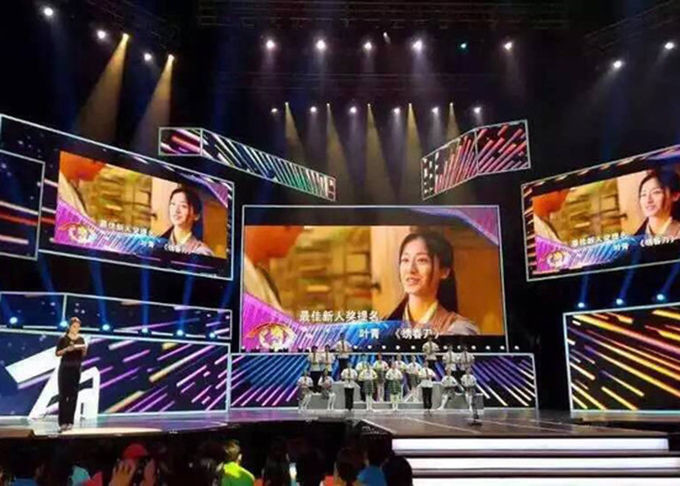

Widely used in retail store, pubs and hotels, shopping center, TV
and broadcasting center, worship, theater, auto show, award and
corporate show, concert touring, rental and staging, festival and
sports event, art exhibition, press conference etc.
Specifications:
1. Indoor led Display technical parameter
| Pixel Density(pixel/㎡) | 62500 |
| White Balance Brightness (cd/㎡) | ≥1800(adjustable) |
| Max Power Consumption | 300W/cabinet |
| Average Power Consumption | 150W/cabinet |
| Color Temperature | 3200-9300(adjustable) |
| View Angle | Horizontal 110°；Vertical 80° |
| Best Viewing Distance(m) | 4m—100m |
| Display Work Method | 1/8 scan |
| Digital Processing | 14 bit |
| Gray Scale | 65536 levels per color |
| Refresh Frequency (Hz) | ≥1200 |
| Input Signal | Video: PAL/NTSC Option: VGA , Video , DVD,TV,
SDI.HDMI etc |
| Waterproof | No |
| Working Temperature(ºC) | -20～+45 |
| Humidity(RH) | 10% - 80% |
| Stored Temperature (ºC) | -30～+60 |
| Lifetime (50%Brightness)(Hours) | ≥100,000 |
| Input Voltage(VAC) | AC 220(or 110V) |
| Input Power Frequency(Hertz) | 50 to 60 |
| Data Connection | Super CAT6 Cable or Fiber |
| Operating System | Windows(98/2000/XP/Vista) |
| Blind Spot Rate | ＜0.00001 |
| Control Distance | CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers |
| Panel Input Format (With Video Processor) | VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV |
| Earth Leakage Current(mA) | ＜2 |
2. Indoor LED Display Module
| Pixel Configuration | SMD1921 | Pixel Pitch | 4 mm |
| Module Resolution | 64*32dots | Module Size(W*H) | 256*128mm |
| Weigth Per Module | 0.45 kg | Max Power Consumption | 20W |
3. Indoor LED Display Cabinet
| Cabinet Size(W*H) | 512*512mm | Module Qty | 8 pcs |
| Cabinet Resolution | 128*128 | Cabinet Area | 0.262㎡ |
| Weight Of One Cabinet | 8.5 kg | Cabinet Pixel | 16384 |
| Cabinet Flatness | ＜0.2/㎡ | Cabinet Material | Die Casting Cabinet |
