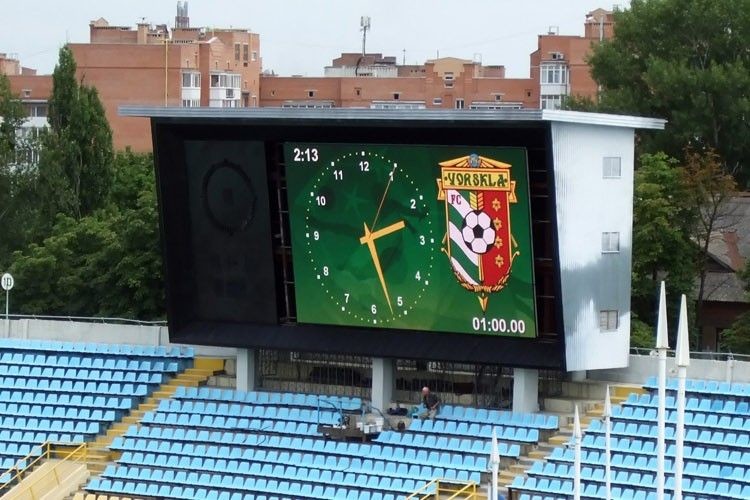

Energy Saving P10 Outdoor Led Display / Large Led Stadium Display
stadium led signs
Stadium Led Display Introduction:
1. Energy-saving Design : Power consumption is lower than DIP
outdoor products, each LED electric current is below 15mA, lifespan
is longer, outdoor led advertising screen can reduce 25-50% of the
power consumption effectively, low-carbon environmental protection,
save electricity for customers .
2. Wide Viewing Angle : LED SMD encapsulation technology, makes
surface more smooth, the outdoor full color LED Display can reach
140 degrees viewing angle both in the horizontal and the vertical
direction, this has special advantages in some place, such as wall
LED Display, requires a wide viewing angle to show better
advertising effect.
3. Nice Color Blending : color uniformity is good, outdoor SMD
3-in-i design technology makes all the red, green, and blue chip in
one structure, distance is close, so it ensures the coherence of
brightness at optional angle is very good, achieve vivid viewing
effect, at the same time, the mask is dealt with special
processing, can ensure the coherence of product's brightness
further.
4. High Definition : High contrast, due to 3-IN-1 design structure,
full-color SMD3535 lamp bead size is small, so the light emitting
area is small, the black area is large, enhances the contrast of
LED Screen, the 1/2 scan mode high refresh rate, the gray level
> 16384, the refresh rate > 1200 Hz,makes the outdoor
full-color LED Display is clear enough to replace the traditional
DIP LED Display.
5. Good Heat Dissipation: using six Angle SMD3535 lamp bead, the
heat of lamp and IC can be dispersed by PCB board more effectively,
improve the heat dissipation performance of LED display module
significantly.
6. High Automation Production Efficiency: SMD LED can be processed
by automatic SMT mounter, improving production efficiency, reducing
defective product rate.
7. Light Cabinet Weight : Outdoor SMD 3-IN-1 LED uses waterproof
glue filling process, because of low lamp foot, don't need too much
glue to cover the lamp foot like the DIP, the surface is nice and
not deformed easily, assembling is convenient and neat.
Application:Apply to all indoor stadiums, like basketball, volleyball,
baseball, ice hokey, etc.
Product specification
| Model No. | P10 |
| Pixel Pitch | 10mm |
| Pixel Package | SMD3535 |
| LED Configuration | 1R1G1B |
| Pixel Density | 10000 Pixels/㎡ |
| Module Size | 160mm x 160mm |
| Module Resolution | 16 x16 dots |
| Suggested Cabinet Size | 960mm x 960mm x 100mm |
| Cabinet Resolution | 96 x 96 dots |
| Cabinet Material | Iron / Aluminum |
| Cabinet Weight | ＜ 45kg/㎡ |
| Brightness | 7000 nits |
| Color Temperature | 3000-12000K |
| Viewing Angle | H-120°/ V-120° |
| Driving Mode | 1/4 |
| Refresh Rate | 960-2880Hz |
| Frame Frenquency | 60Hz |
| Grey Level | 4096-16384 |
| Number of Color | 1 Billion |
| Input Maximum Power | 530 W/㎡ |
| Input Voltage | AC220±10%, AC110 ±10% |
| Input Frequency | 50-60Hz |
| External Interface | S-video, VGA, DVI, SDI, CVBS, YPrPb, HDMI, etc |
| IP Rating | IP65 |
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the
trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer
service
We had developed our service organization by responding to and
meeting the diverse and demanding needs of customers by service
mission. We had become a cost-effective, highly skilled service
organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and
will do our best to fulfill our promise. We always bear this
service goal in mind. We can't boast the best, yet we will do our
best to free customers from worries. When you get problems, we had
already put forward solutions before you.
