GOB Shelf Edge LED Panel 5W 1000nit 1200*60mm Factory price 1.5KG
Product introduction

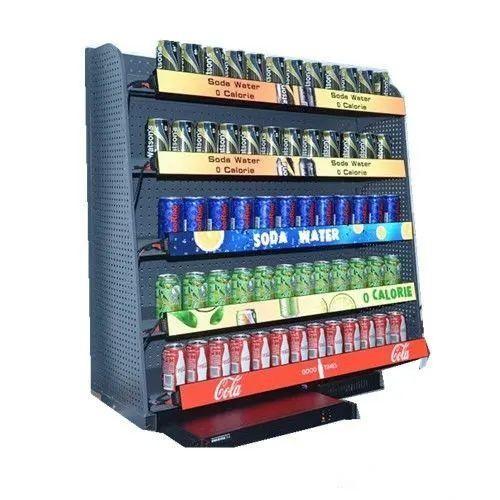

Shelf LED Display Screen including normal Shelf LED Display and
shelf Header LED Display screen. Header shelf LED Display Screen
install at the top of the shelf, wide display area can attract more
customers' attention, it can bring more customers and profits.
Multiple installation methods make installation more convenient.
Features :
• Ultra thin width, light weight, easy to install and move.
• Super simple installation, suitable for all stores.
• Plug in display, easy to operate.
• LAN Integrated publishing and remote publishing via the Internet.
• Various linkage modes, such as single screen application, cascade
application, creative application, etc.
• USB / Wi Fi / HDMI / DVI / wired connection; fast management and
release of mobile phone and PC.
• The calibration data is saved on the module and the factory
settings are restored within 5 seconds.
Specification:
| Pixel Pitch | 1.875mm |
| Pixel Density | 284 444 dots/m2 |
| LED configuration | GOB 3 IN 1 |
| SIZE | 300*60*18.8mm |
| Resolution ratio | 160*32 |
| Chasis material | aluminum |
| Weight | 0.35kg |
| Brightness | 1000nit |
| Gray scale | 16bit |
| Color | 281 trillion |
| Contrast Ratio | 3000:01:00 |
| Refresh rate | 1920HZ |
| Max .Consumption | 10W |
| Ave. Consumption | 4W |
| Viewing angle | 160° /160° |
| Working voltage | DC 5V |
| Life Span | >100,000 Hours |
| Input voltage | AC100V-240V |
How to Select LED Display
Location-indoor,outdoor or semi-outdoor
Location is the most important factors for selecting the correct
LED display.Different type of location such as rooftop,large
billboards and stage backdrops or requires front access for
servicing will require different led cabinets and modules.
Size,Shape and Pitch
Size:Once you have measured the height, width and depth of the
space and availability, then you want to make sure the selected LED
size (and number of cabinets, height, width & depth) can be
accommodated.
Shape:determines if curve or column or flat screens are required.
Pitch:determines the contents of the display and the range of
viewing.
LED Facing Direction
Outdoor LEDs facing east or direct west sunlight will require
higher lamination than those facing north or south. The larger
outdoor billboards and configurations must be equipped with
automatic light sensors to automatically adjust brightness in
reaction to sunlight and cloud covers.
Selecting Your LED Supplier
For shop:
Attract and delight customers attention. Implement efficient
operation for supermarket. Low down labor cost of changing paper
labels.
For ads agency: Innovative Ads media, attracting more attentions.
Easy installation, no need for heavy steel construction and no need
government released approvement.
Higher ROI (Return of investment)
Based on COB/LED technology: Providing more on-the-spot product
information for customers.Offers a more engaging experience for our
customers at the shelf.
Widely Application:
Supermarket, Club, Retails perimeter, retails shop, fashion shop
and so on.
Vivid digital display with roll advertising. Attract and delight
customer attention.Implement efficient operation for supermarket.
