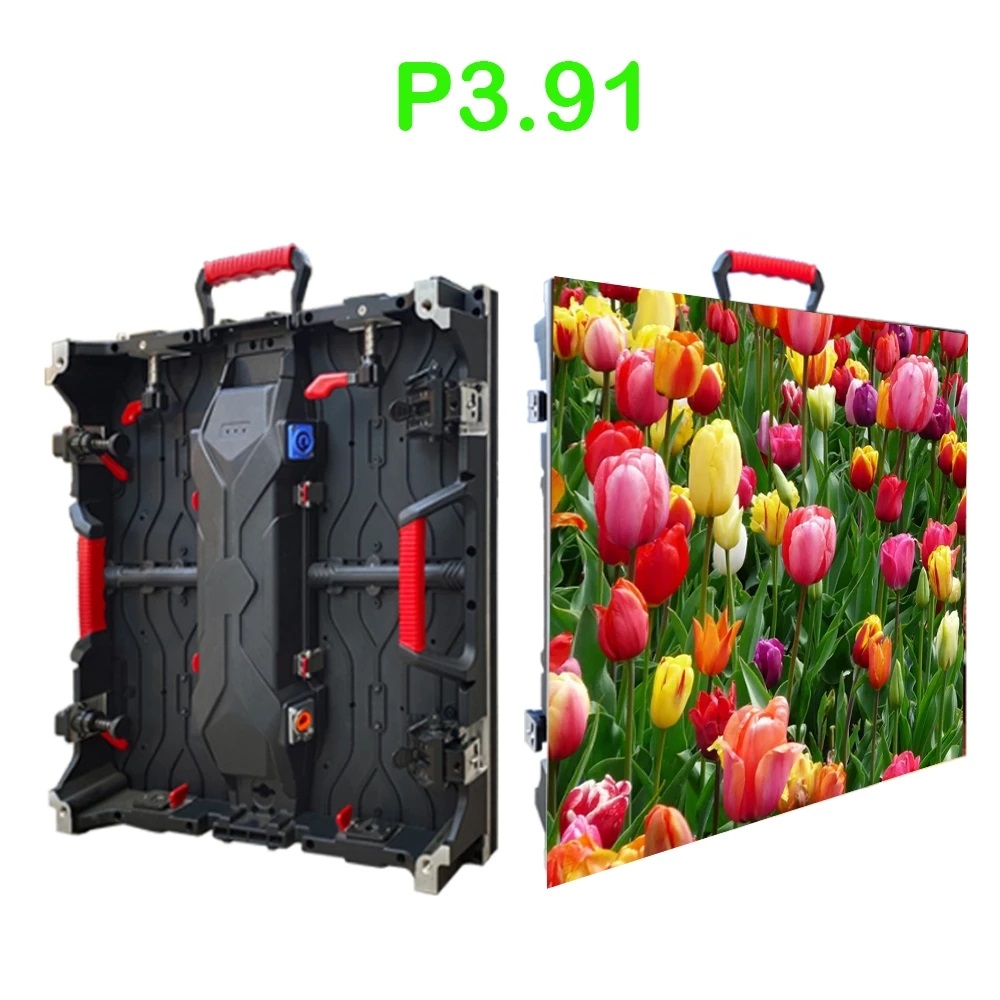

LED display screen Rental cabinet 500*500mm, P3.91 refresh reate
3840Hz For Concert, show, events, parties, weddings
Features:
1. Convenient and fast installation
We adapted Plug and play designing for this series, the power and
signal connector is quite easy and fast for in&out operation; and the signal connection can be in
horizontal and vertical ways, it satisfied the rental application in any cases.
2. Super wide viewing angle (140 Degree)
The SMT technology and one line chip encapsulation optimized the
viewing performance even at wide viewing angle up to 120-140 degree, the gorgeous color uniform will
satisfy the nitpicker's eyes.
3. Easy maintenance
All electrical parts was connected by a driving board inside the
aluminum panel, it helps to decide which part faults when problem comes out and can be replaced quickly.
4. High refresh rates and color contrast
In consider of the full range rental application even for the high
end TV shows or Talks, we improved the base material supplying with all pure black color ones, it enhances
the white/black color contrast greatly, further and more, we raise the refresh rates up to 4000Hz, you'll
not worry about the scanning lines be watched by your living camera.
Application places
Commercial advertising, mobile media, night club, entertainment
events, business establishments, stock exchange centers, bus station, schools, telecommunications,
customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
Specification
| Model | |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65410 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500x500mm/500x1000mm |
| Cabinet Resolution | 128*128px/128*256px |
| Cabinet Weight | 8kg/14kg |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/16 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 420w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Competitive Advantages:
1. Good quality;
2. Good price;
3. Good 24hours service;
4. Promote delivery;
5. Energy-saving;
6. Small order accepted.
Our serrvices
1. Service before sales
On-site inspect
Professional design
Solution confirmation
Training before operation
Software use
Safe operation
Equipments maintenance
Installation debugging
Installation guidance
On-site debugging
Delivery Confirmation
2. After sale service
Quick response
Prompt question resolving
Service tracing
3. Service concept:
Timeliness, considerateness, integrity, satisfaction service.
We are always insisting on our service concept, and proud of the
trust and reputation from our clients.
4. Service Mission
Answer any question; Deal with all the complaint; Prompt customer
service
We had developed our service organization by responding to and
meeting the diverse and demanding needs of customers by service
mission. We had become a cost-effective, highly skilled service
organization.
5. Service Goal:
What you have thought about is what we need to do well; We must and
will do our best to fulfill our promise. We always bear this
service goal in mind. We can't boast the best, yet we will do our
best to free customers from worries. When you get problems, we had
already put forward solutions before you.
