Nationstar P4 LED outdoor display panels 1920Hz refresh rate
Novastar MCTRL600
Product Features:
1. LEDs. we select super led tips with high brightness, broad viewing
angle(H140degree, V140degree), all the LEDs are ageing for 72 hours
before assembly,
when in modules, also aging for 72 hours, after assembly into a
screen, still aging 72 hours. so the final LEDs are aging at least
for 216 hours, up to 9 days.
2. Modules. we use SMD1921 3in1 pixel configuration to realise high
brightness. you may find some lower price suppliers but also same
brightness. if you note, maybe they use is not Nation star LEDs
lamp, in this case, can cut down much cost but also cut down the
life of the display. why? because to reach the same brightness and
better waterproof, it is big square lamps from nation star unique
design can do it. and our modules case is PVC, which is more
durable and have a stronger ability in bask, anti-ultraviolet and
Difficult to deformation than Plastic ones.
3. Cabinets. they are used in galvanized steel, or super lightweight Magnesium
alumnium die casting cabinets, anti-salt, anticorrosive and
waterproof.
4. Screen. use state-of-the-art LED drive IC-ICN2038S, brightness can up to
6000cd/m2, live color video and vivid image with 256 grey level.
for outdoor led displays, all of them are IP65 and designed to
withstand harsh environmental conditions, such as sun glare, heat,
cold, and humidity. you can see more details in the quotation.
5. Packing: anti-shaking wooden case or road flight cases, which is lighter
than normal wooden case but more protective to the goods.
6. Spare parts for free. our screen's scotoma rate is below 0.0002, but To prevent
accidental, we provide some free spare parts according to
the size of screen.
7. Warranty for 24 months.
8. Technology support: we have full hardware and software files available for all you
need, we are here to working for you.
Applications:
Proled LED Billboard Displays are charaterized by high brightness,
reliability and durability,ect.

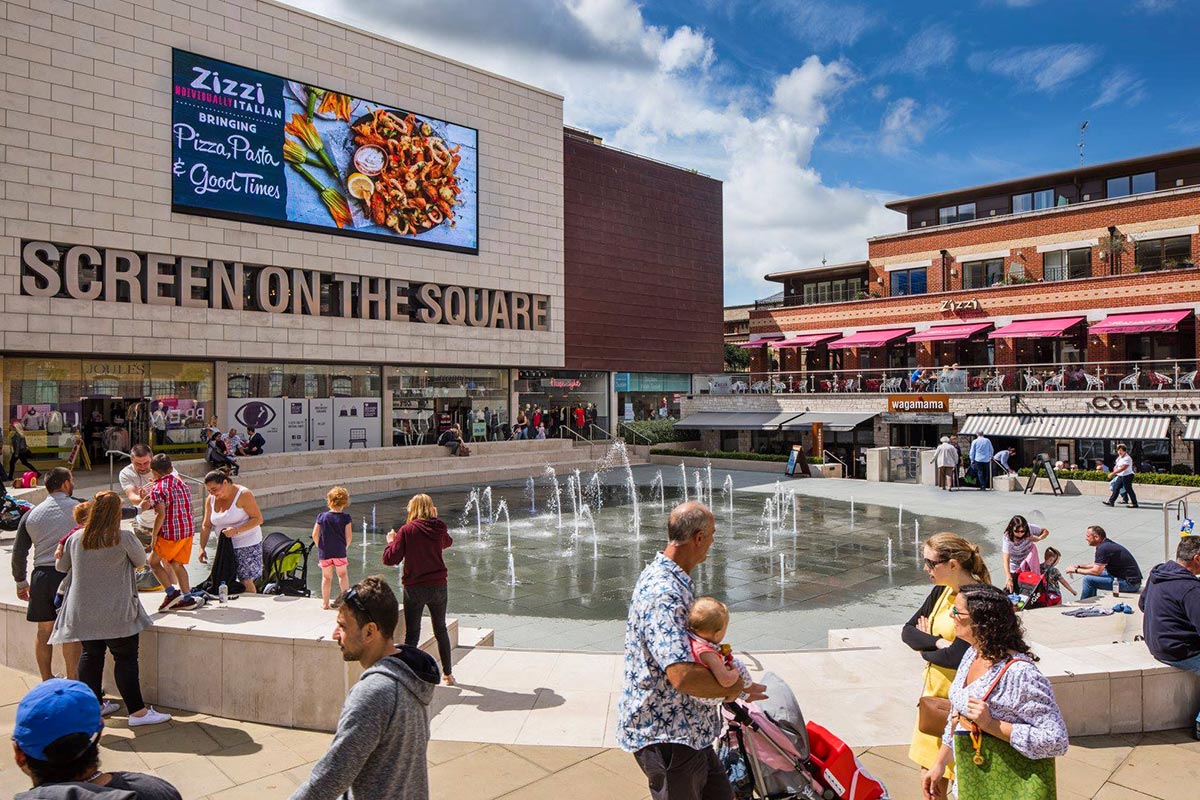

Widely usage,suach as commercial street,shopping mall,train
station,government,plaza,high way etc.
Parameters
| Unit Module | Item | Parameter |
| Model Number | AE-P4OFRGB |
| Module size | 320mm*160mm |
| Pixel pitch | 4mm |
| Pixels Density | 62500dot/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD1921 |
| Pixel resolution | 80dots(W)*40dots(H) |
| Max Power | 27.5W |
| Module thickness | 16mm |
| Weight | 0.58kg |
| Drive type | Constant drive |
| Scan mode | 1/10 |
| Port type | HUB75 |
| Brightness of white balance | ≥6000～6500cd/m2 |
LED Cabinet
| Dimension | 960*960 |
| Monomer Module Number | 18pcs |
| Power supply | 5V/60A*3 pcs |
| Thermal discharge | fan 2pcs |
| Pixel per cabinet | 960mm*960mm |
| Best viewing distance | 4M～10M |
| Best viewing angle | 110°(W) 110°(H) |
| Temperature | working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 100mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 325W/㎡ |
| Max .Power consumption | ≤975W/㎡ |
| Current | ≤20mA(single LED) |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ |
| Grey scale/colors | 4096gray level/16.7M colors |
| MTBF | ≥100000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
Notes: Specifications are for reference only. Please contact our
salesperson for details. All rights are reserved to AVOE.
