Outdoor 3840Hz Window AVOE LED Display 1000x500mm Or 1000x1000mm
Cabinets
3840Hz outdoor window AVOE LED display 1000x500mm or 1000x1000mm
Cabinets 5500nits P3.9-7.8 for advertising
Outdoor transparent LED screen waterproof IP65, to use in the
extremely environment, realizing the exact waterproof,
moisture-proof, anti-collision, anti-UV, anti-dust, avoid the LED
lens dropping phenomena.
Key Features:
1. Waterproof IP65, enable to use in outdoor and indoor various
environment conditions.
2. Edge protection design avoid LED collision for longer lifespan.
3. High protective against collision, statics, collision, moisture,
dust etc, better ensurance for long time usage.
4. Easy and quick for installation and maintenance. Standardized
die-cast aluminum design with quick locks and connectors for fixed
and rental installations. Light weight, Ultra-slim, etc.
Outdoor transparent LED display that can be placed in or outside a
glass window without sacrificing natural light in your space.
Additional benefits include creative and artistic applications,
while meeting security codes and regulations.
Outdoor Rated, All-weatherproof Rated
A reliable solution for both indoor and outdoor environment,
ensures trouble-free operation even in extreme temperatures and
weather.
Brightness : 5000 cd/m²
Cabinet Size:1000×500 mm
Cabinet weight: 15KG
- High transparency with more 70% transparency rate for front and
back
- Fast maintenance design, Wide Viewing angle
- High Brightness, Noiseless working
- Good daylighting and delicate decoration
- Light, thin, strong structure
- Fast Installation in 10 seconds to finish
- Fast lock for cabinet connection
- Ultra thin and light weight for transport.
- Standard cabinet size 1000*500mm.
- Super slim design thickness
- No need to change any building structure for installation.
Parameters
SPECIFICATION
| Pixel Pitch | 3.9-7.8mm | 5.2-10.4mm | 10.4mm | 15.6mm |
| Encapsulation brand | NationStar |
| LED lamp bead model | SMD1912 | SMD1921 | SMD2727 | SMD2727 |
| Pixel composition | 1R1G1B |
| Module Resolution(W*H) | 128x32 dot | 96x24 dot | 48x24 dot | 32x16 dot |
| Module Size(W*H) | 500x250mm |
| Module Fixed Way | Front & Real Access (Screw) |
| Cabinet Resolution(W*H) | 256x64 dot | 192x48 dot | 96x48 dot | 64x32 dot |
| Cabinet Size(W*H*D) | 1000x500mm |
| Module arrangement(W*H) | 2x2 |
| Cabinet Weight (kg/㎡) | 15kg |
| Cabinet Material | Aluminum Die-casting |
| Flatness between modules | <0.1mm |
| Maintenance Way | Front / Rear Access |
| Density of Pixel (dots/㎡) | 32768 | 18432 | 9216 | 4096 |
| Brightness(cd/㎡) | 4500 | 4500 | 4500 | 6500 |
| Viewing angle | 140°/140° |
| Transparency rate | 65% | 68% | 68% | 75% |
| Contrast | 6000:1 |
| Protection level | IP65 |
| Gray scale | 16bit |
| Chromaticity uniformity | ±0.003 within Cx,Cy |
| Scan mode | 1/8 | 1/4 | 1/2 | Static |
| Frame change frequency | 60 |
| Refresh rate | <3840 |
| Color temperature | 2000K 〜9500K |
| Operating platform | Windows XP/7/8/10 |
| Signal Input | HDMI,DVI |
| Operating Voltage | AC: 11OV~24OV, 50~60Hz |
| Maximum Power (W/㎡) | 800 |
| Average power (W/㎡) | 240 |
| Continuous working time | >7x24hrs |
| Service life | 100000Hours |
| Operating environment | 0℃-40℃, 35%〜85%RH |
Applications:
Trade display windows and pubic building space
Glass curtain wall gain a good space visual effect indoor, such as
in chain store, shopping mall,exhibition center, airport, metro
station, automobile 4S shop, jewelry store, bank etc. which brings
strong visual impact and sense of hierarchy for LED transparent
display.

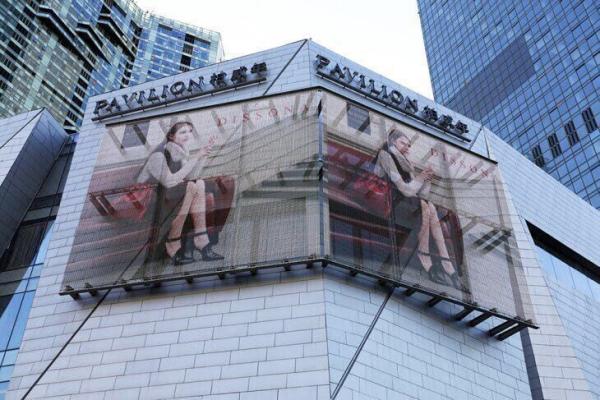

Large building glass curtain wall
With high transparent effect and showing in lively HD and
holographic effect as well as intelligent interactive function, the
application of large building glass curtain wall achieved in mixing
harmonious and innovative display effect without changing any
building structure.
-Full LED encapsulation, IP65 Waterproof Dustproof Anti-collision.
-60%-95% transmittance, seamless connection.
-Super slim and slight, easy window installation.
-Energy conservation, material heat dissipation.
-Neat frame, front and rear access.
Stacking, Hoisting installation.
